Changes and features of Oracle 19c for Standby Database

With the wider adoption of Oracle container databases and the impending de-support of non-container database coming with Oracle Database 20c, it is well worth considering how this will impact your standby databases and Disaster Recovery (DR) environments.

The good news is that overall, the principle of standby databases has not changed significantly but there are a few key points that need to be understood to manage standby databases in the multi-tenant architecture effectively. There are also a few new features that will help with standby database management.

First, let's consider that all Pluggable databases in a container share the same instance components

1. Background Processes
2. Shared and Process memory (SGA/PGA)
3. Online and archive redo logs

So, bearing those in mind, how do we protect a pluggable database (PDB) with a Standby database? For the most part, as we did before with a few key clarifications:

1. The database role is defined at the container level; Individual pluggable databases (PDBs) do not have their own roles.
2. The database role is changed by issuing DDL at the container level; all PDB's change at the same time.
3. ALTER DATABASE RECOVER MANAGED STANDBY functions only in the root container; it is not allowed in a PDB.
4. The ALTER PLUGGABLE DATABASE [OPEN|CLOSE] SQL statement is supported on the standby, provided you have already opened the root container.
5. The ALTER PLUGGABLE DATABASE RECOVER statement is not supported on the standby. (Standby recovery is always at the CDB level.)

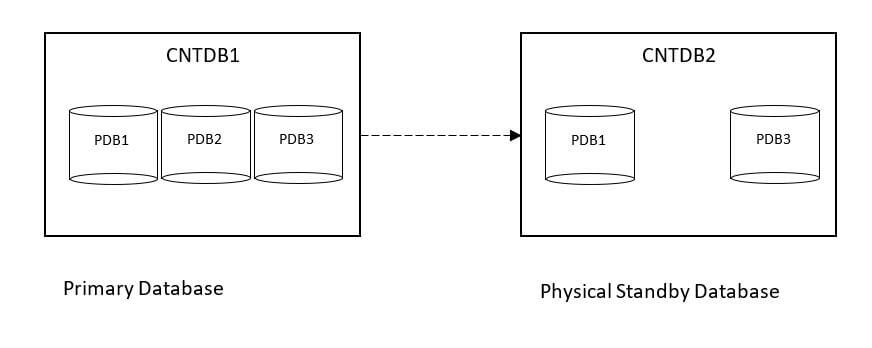

6. A Standby container database does not have to have standby PDB's for all PDB's in the primary container.

Create Standby Container

Let's walk through a quick example. Once we have our primary container setup with the PDB's we can start thinking about setting up a standby container database.

When using Multi-tenant, the standby is setup at the container level and then all PDB's are protected if you choose them to be. So first we need to set up the CDB with a standby, mostly as we did with non CDB:

1. Enable Force Logging Mode
2. Configure the Primary Database to Receive Redo Data
3. Set Primary Database Initialization Parameters (log_archive_dest_2 etc)
4. Enable Archiving
5. Create a Backup Copy of the Primary Database Data Files
6. Create a Control File for the Standby Database
7. Create a Parameter File for the Standby Database
8. Copy Files from the Primary System to the Standby System
9. Set Up the Environment to Support the Standby Database
10. Copy password file to standby Oracle Home
11. Configure and start new Container listener
12. Update tnsnames on both nodes & verify connectivity:

From Primary node: sqlplus sys@CNTDB2 as sysdba

From Standby node: sqlplus sys@CNTDB1 as sysdba

13. Start the Physical Standby Database (nomount)

14. Restore the backup

rman target /
restore standby controlfile from '/oracle/app/oracle/recovery_area/CNTDB1/CNTDB1_standby.ctl';
alter database mount;
restore database;
sqlplus / as sysdba

15. Start Standby log apply

ALTER DATABASE RECOVER MANAGED STANDBY DATABASE DISCONNECT FROM SESSION;

16. Verify the Physical Standby Database Is Performing Properly

SELECT ROLE, THREAD#, SEQUENCE#, ACTION FROM V$DATAGUARD_PROCESS;

Verify PDB Status

So now we have a standby container DB let's check on the PDB's

set lines 100
column name format a20
SELECT name, open_mode FROM v$pdbs;

NAME                 OPEN_MODE
-------------------- ----------
PDB$SEED             MOUNTED
PDB1                 MOUNTED

SQL> SELECT DB_UNIQUE_NAME, OPEN_MODE, DATABASE_ROLE from v$database;

DB_UNIQUE_NAME                 OPEN_MODE            DATABASE_ROLE
------------------------------ -------------------- ----------------
CNTDB2                         MOUNTED              PHYSICAL STANDBY


SELECT name, open_mode FROM v$pdbs;

NAME                  OPEN_MODE
--------------------  ----------
PDB$SEED              READ ONLY
PDB1                  MOUNTED

Note that the PDB Name matches the primary PDB Name (PDB1)

Adding additional PDB's

Given the fact the role is set at the container level, we cannot add a distinct PDB to the standby container without it already having an associated Primary PDB in the Primary CDB. When we add a Primary PDB, we can select at that point whether it is protected by a standby or not. Note that we can also add/remove the standby out with this operation as indeed we did above.

Adding a new PDB to the primary container with a standby (seed)

This can be done in one step by either creating a new database or cloning from an existing PDB

SQL > CREATE PLUGGABLE DATABASE TESTPDB2 ADMIN USER PDMADMIN IDENTIFIED BY ******* STANDBYS=('CNTDB2');

This is great as it creates a new PDB (Based on the seed database) and also creates a standby database in the standby container

Adding a new PDB to the primary container with a standby (Clone)

SQL> CREATE PLUGGABLE DATABASE TESTPDB3 FROM PDB1 STANDBYS=('CNTDB2');

Again, we get a new Primary and standby in one statement very cool!

Switchover between Primary and Standby

We do not do this very often but when building a new database, it is a good idea to switch over the roles to ensure that the archivelogs can be sent and applied between the DR and primary sites. As mentioned earlier, this is done at the container database level, and all PDB's are switched.

Verify that the primary database can be switched to the standby role.

PRIMARY CDB
ALTER DATABASE COMMIT TO SWITCHOVER TO PHYSICAL STANDBY WITH SESSION SHUTDOWN;
STARTUP MOUNT;
ALTER DATABASE RECOVER MANAGED STANDBY DATABASE USING CURRENT LOGFILE DISCONNECT FROM SESSION;


NEW PRIMARY (CNTDB2)
ALTER DATABASE COMMIT TO SWITCHOVER TO PRIMARY WITH SESSION SHUTDOWN;
ALTER DATABASE OPEN;
ALTER PLUGGABLE DATABASE ALL OPEN;

Switch Back using the same process as above.

Convert to snapshot standby

Snapshot standby is a really great feature of Dataguard and can be used for reporting databases, DR tests, production destructive testing, etc so let’s make sure it still works in 19c! Again, this is done at the Container level with all PDB's affected.

ALTER DATABASE RECOVER MANAGED STANDBY DATABASE CANCEL;
ALTER DATABASE CONVERT TO SNAPSHOT STANDBY;
ALTER DATABASE OPEN;

So, all in all, yes it works largely the same way except that it is all done at container level so all PDB's are converted to snapshot standby at the same time.

Key Differences in 19c

• The process of flashing back a physical standby to a point in time that was captured on the primary is simplified by automatically replicating restore points from primary to the standby. See Replicating Restore Points from Primary to Standby.
• When flashback or point-in-time recovery is performed on the primary database, a standby that is in mounted mode can automatically follow the same recovery procedure performed on the primary.
• DML operations can be performed on Active Data Guard standby instances by transparently redirected to and run on the primary database.



Changes in Oracle Database Release 18c

These are the changes in Oracle Data Guard Concepts and Administration for Changes in Oracle Database Release 18c, Version 18.1.

• The database buffer cache state is now maintained on an Oracle Active Data Guard standby during a role change
• Global temporary tables can now be dynamically created on an Oracle Active Data Guard standby database
• A new view V$DATAGUARD_PROCESS (which replaces V$MANAGED_STANDBY) provides information that can be queried to verify that redo is being transmitted from the primary database and applied to the standby database.
• Database nologging has been extended with two new modes: Standby Nologging for Load Performance and
• Standby Nologging for Data Availability.
• A standby database can now be refreshed over the network using one RMAN command, RECOVER STANDBY DATABASE.

Read our latest blog about upgrading your Database to Oracle 19c, and the risk of being unsupported if you don't.

Other Resources

Technical considerations for EBS 12.2.9 and Oracle DB 19c Upgrades

Oracle 19c new features

Oracle 19c Database Upgrade

Upgrade to Oracle 19c now, or face the risk of being unsupported

References

Oracle® Data Guard Concepts and Administration 19c E96244-03
Data Guard Impact on Oracle Multitenant Environments (Doc ID 2049127.1)
